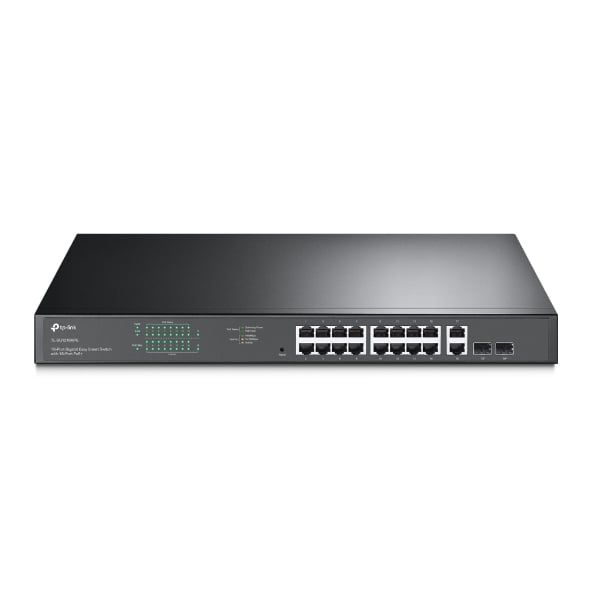

- 16× PoE+ gigabit RJ45 ports, 2× gigabit non-PoE RJ45 ports and 2× combo gigabit SFP slots.
- PoE power budget is up to 250 W, making it ideal for small to medium business surveillance systems.*
- Port Priority is able to guarantee the quality of sensitive application like video monitor.
- PoE Auto Recovery automatically reboots your dropped or unresponsive PoE-powered devices.
- Intelligent power management protects the switch from overload.
- QoS ensures smooth traffic for latency sensitive applications.
- IGMP Snooping optimizes multimedia traffic delivery, such as IPTV.
Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
| TÍNH NĂNG PHẦN CỨNG | |
|---|---|
| Chuẩn và Giao thức | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
| Giao diện | • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 2× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 2× Combo Gigabit SFP Ports |
| Mạng Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF |
| Số lượng quạt | 2 Fans |
| Khóa bảo mật vật lý | Yes |
| Bộ cấp nguồn | 100–240V AC, 50/60 Hz |
| Cổng PoE+ (RJ45) | • Standard: 802.3at/802.3af compliant • PoE+ Ports: Ports 1–16 • Power Supply: 250 W |
| Kích thước ( R x D x C ) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Lắp | Rack Mountable |
| Tiêu thụ điện tối đa | • 21.4 W (220/50Hz. no PD connected) • 296.3 W (220/50Hz. with 250 W PD connected) |
| Max Heat Dissipation | • 72.97 BTU/h (no PD connected) • 1010.38 BTU/h (with 250 W PD connected) |
| HIỆU SUẤT | |
|---|---|
| Switching Capacity | 36 Gbps |
| Tốc độ chuyển gói | 26.78 Mbps |
| Bảng địa chỉ MAC | 8K |
| Bộ nhớ đệm gói | 4.1 Mbit |
| Khung Jumbo | 10 KB |
| TÍNH NĂNG PHẦN MỀM | |
|---|---|
| Chất lượng dịch vụ | • Support Port-based 802.1p/DSCP priority • Support 4 priority queues • Rate Limit • Storm Control |
| L2 Features | • IGMP Snooping V1/V2/V3 • Static Link Aggregation • Port Mirroring • Cable Diagnostics • Loop Prevention • PoE Auto Recovery |
| VLAN | • Support up to 32 VLANs simultaneously (out of 4K VLAN IDs) • MTU/Port/Tag VLAN |
| Quản lý | • Web-based GUI • Easy Smart Configuration Utility |
| Transmission Method | Store-And-Forward |
| KHÁC | |
|---|---|
| Chứng chỉ | CE, FCC, RoHS |
| Sản phẩm bao gồm | • TL-SG1218MPE • Power Cord • Installation Guide • Rackmount Kit • Rubber Feet |
| Môi trường | • Operating Temperature: 0–50 °C (32–122 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
