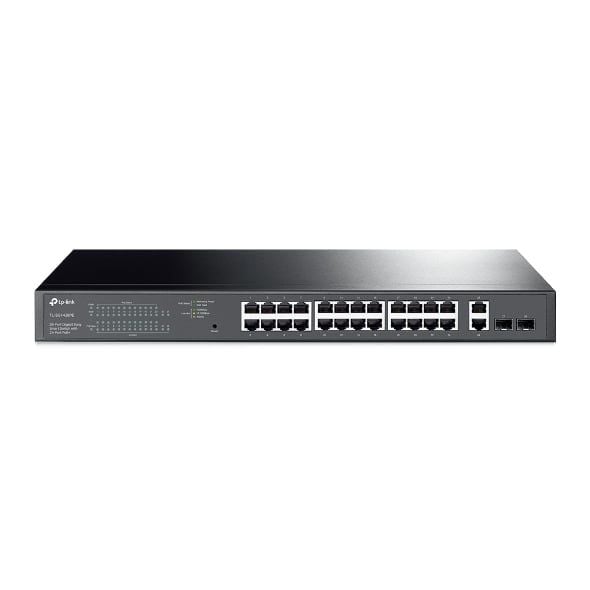

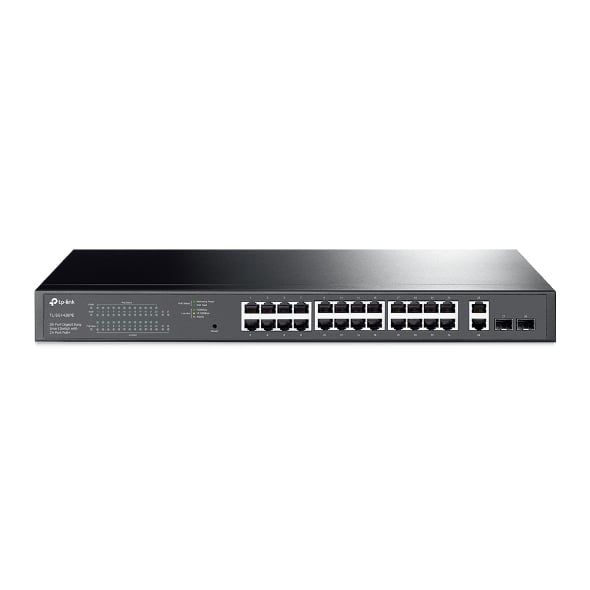

- 24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots
- PoE power budget is up to 250 W*, making it ideal for small to medium business surveillance systems
- Priority Mode helps to guarantee the quality of sensitive application like video monitoring
- PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices
- QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
- Intelligent power management can protect the switch from overload
| TÍNH NĂNG PHẦN CỨNG | |
|---|---|
| Chuẩn và Giao thức | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
| Giao diện | 26 10/100/1000 Mbps RJ45 Ports 2 Gigabit SFP Ports |
| Mạng Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF |
| Số lượng quạt | 2 Fans |
| Khóa bảo mật vật lý | Yes |
| Bộ cấp nguồn | 100-240V AC, 50/60 Hz |
| Cổng PoE+ (RJ45) | Standard: 802.3at/802.3af compliant PoE+ Ports: 24 Ports Power Supply: 250 W |
| Kích thước ( R x D x C ) | 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm) |
| Lắp | Rack Mountable |
| Tiêu thụ điện tối đa | 27 W (220/50Hz. no PD connected) 304.7 W (220/50Hz. with 250 W PD connected) |
| Max Heat Dissipation | 92.07 BTU/h (no PD connected) 1039.03 BTU/h (with 250 W PD connected) |
| HIỆU SUẤT | |
|---|---|
| Switching Capacity | 56 Gbps |
| Tốc độ chuyển gói | 41.7 Mbps |
| Bảng địa chỉ MAC | 8K |
| Bộ nhớ đệm gói | 4.1 Mbit |
| Khung Jumbo | 9 KB |
| TÍNH NĂNG PHẦN MỀM | |
|---|---|
| Chất lượng dịch vụ | Support Port-based 802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention PoE Auto Recovery |
| VLAN | Support up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Quản lý | Web-Based GUI Easy Smart Configuration Utility |
| Transmission Method | Store-And-Forward |
| KHÁC | |
|---|---|
| Chứng chỉ | CE, FCC, RoHS |
| Sản phẩm bao gồm | TL-SG1428PE Power Cord Installation Guide Rackmount Kit Rubber Feet |
| Môi trường | Operating Temperature: 0°C~50°C (32°F~122°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |
