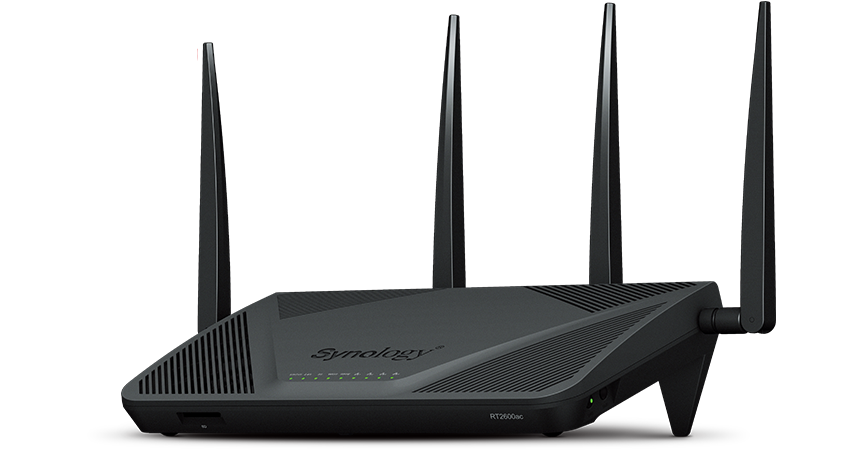

Bộ định tuyến Synology Router RT2600ac
Wi-Fi cực nhanh với băng thông không dây kết hợp lên đến 2,53Gbps để tăng cường trải nghiệm Internet của bạn. RT2600ac là bộ định tuyến không dây mạnh mẽ dành cho các gia đình và văn phòng nhỏ muốn hiểu, kiểm soát và bảo mật mạng của họ. Giờ đây, với công nghệ Wi-Fi lưới, phạm vi phủ sóng của nó trở nên dễ dàng mở rộng với Synology MR2200ac bổ sung.
Được thiết kế cho hiệu suất
Hỗ trợ MU-MIMO và chuẩn 802.11ac Wave 2 mới nhất, RT2600ac cho phép tương ứng lên tới 800 Mbps và 1733 Mbps trên radio 2,4 GHz và 5 GHz. Đạt tới băng thông kết hợp 2 Gbps với Dual WAN 1 và dễ dàng tối ưu hóa mạng của bạn với mức giảm hiệu suất tối thiểu ngay cả khi kiểm soát lưu lượng dựa trên ứng dụng.
CPU: 1.7GHz Dual Core
Powerful Wi-Fi: Quad Stream, Dual Band
AC2600, Wave 2: With MU-MIMO & Beamforming
Layer 4 & 7: Hardware Acceleration Engine
Thông số kỹ thuật của Bộ định tuyến Synology Router RT2600ac
- Hardware Specs
CPU | Dual core 1.7 GHz | |
|---|---|---|
Hardware Acceleration Engine | Layer 4 / Layer 7 | |
Memory | 512 MB DDR3 | |
Antenna Type | 4×4 MIMO Omni-directional high-gain dipole (2.4GHz / 5GHz) | |
LAN Port |
| |
WAN Port |
| |
External Ports |
| |
IEEE 802.11ac |
| |
IEEE 802.11ac Wave 2 |
| |
| Notes | 2×2 160 MHz (contiguous 80 + 80 MHz) is not supported in Japan | |
Wi-Fi Encryption | WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA2/WPA3-Personal, WPA3-Personal/Enterprise, OWE | |
Button and Switch | WPS, USB/SD eject, Power, Reset, Wi-Fi On/Off | |
Size (Height x Width x Depth) | 77 mm x 280 mm x 169 mm | |
| Notes | The listed sizes of the RT1900ac and RT2600ac don’t include the antennas | |
Weight | 0.7 kg | |
Temperature | Operating Temperature | 5°C to 40°C (40°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
Certification |
| |
Wi-Fi Certification |
| |
Warranty | 2 Years | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) | |
AC Input Power Voltage | 100 V to 240 V AC | |
Power Frequency | 50/60 Hz, Single Phase | |
Power Consumption* | 10.80 W (Access) 7.94 W (Idle) | |
Environment | RoHS Compliant | |
Packaging Content |
| |
- Software Specs
SRM Specifications | ||
|---|---|---|
Wireless | Wi-Fi MAC Address Filter | |
| Maximum MAC Filters | 64 | |
| Seamless Roaming | 802.11k/v/r standard support | |
| Beamforming | ||
| DFS | ||
| WDS | ||
| Schedulable Wi-Fi | ||
| Guest Network |
| |
| WPS 2.0 (Wi-Fi Protected Setup 2.0) | ||
| 3G / 4G Dongle & Tethering (Learn more) | ||
| Maximum Connected Devices* | 100 | |
| Primary Wi-Fi Point | ||
| Recommended Maximum Number of Wi-Fi Points |
| |
| Notes |
| |
Network | Internet Connection |
|
| Operating Mode |
| |
| DMZ | ||
| IPv6 | IPv6 DHCP server/client, DS-Lite, 6in4, 6to4, 6rd, Dual-Stack, DHCPv6-PD, IPv6 Relay, FLET’s IPv6 | |
| DHCP | Server/client mode, client list, MAC address reservation | |
| Maximum DHCP Reservations | 500 | |
| LAN / WLAN IGMP Snooping | ||
| Network Address Translation (NAT) | ||
| PPPoE relay | ||
| Policy route | ||
| Static route | ||
| Maximum IPv4 Static Routes | 100 | |
| Maximum IPv6 Static Routes | 100 | |
| Diagnosis Tools |
| |
| NAT Loopback (Hairpinning) | ||
Port Forwarding | Setup via manual management or UPnP | |
| Maximum Port Forwarding Rules | 64 | |
| Maximum UPnP Rules | 64 | |
Port Triggering | Maximum Port Triggering Rules | 32 |
| Minimum Port Triggering Timeout | 30s | |
| Maximum Port Triggering Timeout | 3600s | |
VPN |
| |
Traffic Control | Internet Ban, Device Speed & Priority | |
| Application Layer (L7) Quality of Service (QoS) | ||
| Maximum Device Rules | 64 | |
| Maximum Application Rules per Device | 32 | |
Traffic Monitor | Live View | |
| Historical Statistics | Daily, Weekly, Monthly, Annual | |
| Website History | ||
| Application Detection | ||
Traffic Report | Country Auto Update | |
| Schedulable | ||
| Traffic Analysis Period | Daily, Weekly, Monthly, Annual | |
| Export Formats | .CSV, .HTML | |
Add-on Packages view the complete package list | ||
Safe Access | User Profile | 15 |
| Network Profile | 2 | |
| Customized Internet Schedule | ||
| Time Quota | ||
| IPv4 / IPv6 DNS-based Web Filter |
| |
| Customized Allow / Block List |
| |
| Pause Internet | ||
| Reward | ||
| Log | ||
| Report | ||
| Safe Search | Bing, Google, YouTube | |
| Threat Intelligence Database | support in IPv4 & IPv6 | |
| Google Safe Browsing | support in IPv4 & IPv6 | |
| Database Auto Update | Threat Intelligence Database, Google Safe Browsing, DNS-based web filter | |
Threat Prevention | Greatly enhance the security of your router, designed to safeguard your network against internet threats | |
VPN Plus Server | Easily create and manage secure VPN access through a web browser or client. Supports various VPN services — Site-to-Site VPN, WebVPN, SSL VPN, Remote Desktop, SSTP, OpenVPN, L2TP over IPSec, and PPTP | |
| Maximum Client VPN Access License | 20 | |
| Site-to-Site VPN | ||
| Maximum Site-to-Site VPN Tunnels | 10 | |
| Remote Desktop (RDP + VNC) | 3 | |
| Connection List | ||
| Log | ||
| Report | ||
Cloud Station Server | Sync data from multiple platforms, centralizing it on the router while easily keeping historical versions of important files | |
| Maximum Concurrent File Transfers | 128 | |
| Notes | Cloud Station ShareSync is not supported | |
DNS Server | Helps users find and translate domain names into IP addresses | |
Download Station | Supported download protocols: BT/HTTP/FTP/NZB/eMule | |
| Maximum Concurrent Download Tasks | 20 | |
| Maximum Concurrent BT Download Tasks | 20 | |
Media Server |
| |
RADIUS Server | Provides centralized authentication, authorization, and accounting for wireless network access | |
Mobile Apps | ||
Supported Mobile Apps | DS router (Android/iOS) |
|
| VPN Plus (Android/iOS) | ||
| DS cloud (Android/iOS) | ||
| DS get (Android) | ||
| DS file (Android/iOS) | ||
Management | ||
Operating System | Synology Router Manager (SRM) | |
Anywhere Access to SRM | Synology QuickConnect & Dynamic DNS (DDNS) | |
Security | Firewall/SPI Firewall, DoS Protection, VPN Pass-through (PPTP, IPSec, L2TP), Auto block, SSL certificate, Security Advisor, two-factor authentication | |
Wake on LAN (WOL) | WOL over QuickConnect | |
| Maximum Connected Devices | 100 | |
Notification | Email, SMS, push service (via DS router) | |
Printer Server | Maximum printer: 1 | |
Others | Free OS Upgrade | |
| SSH | ||
| SNMP | ||
| Configuration Backup & Restore | ||
| User Account Management | ||
USB/SD Card File Service | ||
File System | EXT4, FAT, NTFS, HFS+ | |
Access Support |
| |
Protocol Support | Windows file service (CIFS), Mac file service (AFP), FTP/FTPS, WebDAV | |
Others | Apple Time Machine | |
| Shared Folder Privileges | ||
| Storage Hibernation | ||
