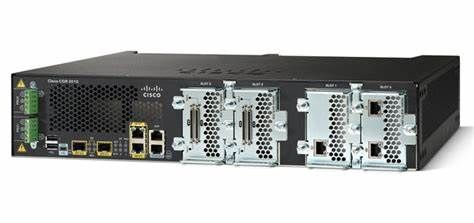

Router Cisco CGR 2010/K9 là một bộ định tuyến được tối ưu hóa để sử dụng trong vô số các mạng truyền thông khác nhau, đặc biệt là trong các ngành công nghiệp năng lượng và tiện ích.
Một ví dụ ứng dụng cho Cisco CGR 2010/K9 là dành cho các mạng trạm biến áp trong môi trường khắc nghiệt phổ biến trong các trạm phân phối và truyền tải tiện ích. CGR 2010/K9 cung cấp cho các nhà khai thác các lợi ích của việc cải thiện bảo mật, khả năng quản lý và độ tin cậy của mạng.Thông số kỹ thuật:
Feature | Specification | |
Substation hardening compliance | IEC 61850-3 IEEE1613 | |
Embedded hardware-based cryptography acceleration (IPSec + SSL) | Yes | |
Total onboard Combo Ethernet WAN Ports | 2 | |
Grid Router WAN Interface Card (GRWIC) slots | 4 | |
Double-wide capable GRWIC slots (use of a double- wide GRWIC slot will consume two GRWIC slots) | 2 | |
Memory DDR2 ECC DRAM - default | 1 GB | |
Rugged compact flash | slot 0: 256 MB (Default) slot 1: 256 MB (Optional Expansion for storage) | |
External USB 2.0 flash memory slots (Type A) | 2 | |
USB Console port (Type B) (up to 115.2 kbps) | 1 | |
Serial console port | 1 | |
Serial auxiliary port | 1 | |
Power supply options | Two power supply options: - Low-voltage DC power supply (available in late 2010) - AC or high-voltage DC power supply Any combination of power supplies can be inserted into the chassis. Dual power supply configurations are load sharing in redundancy mode, although a single power supply is sufficient for supporting power needs for the system. | |
Power specifications | ||
AC input voltage (Power Supply Unit 1) | Nominal Range: 100 - 240 VAC Operating Range: 85 -264 VAC AC supply also accepts a DC input with an operating range of 88 - 300 VDC | |
DC input voltage (Power Supply Unit 2) | Nominal Range: 24 - 60 VDC Operating Range: 20 - 75 VDC | |
AC input frequency | 47 to 63 Hz | |
AC input current range for AC power supply (maximum) | 2 A | |
AC input surge current | <50 A | |
DC input voltage | 24 - 60 VDC, extended 88-300 VDC (on separate power supply) | |
System power consumption (with no modules) (Watts) | 30 Watts | |
Grid Router WIC power consumption | Typical: 4.5 Watts Maximum: 6 Watts | |
Physical specifications | ||
Dimensions (H x W x D) | 3.5 x 17.25 x 15 in. (88.9 x 438.2 x 381 mm) | |
Rack height | 2 RU (rack unit) | |
Rack-mount 19 in. (48.3 cm) EIA | Included | |
Wall-mount | Yes | |
Weight with 1 power supply (no modules) | 19 lbs (8.6kg) | |
Typical weight fully configured with 2 power supplies and 4 GRWICs | 25 lbs (11.4 kg) | |
Airflow | Convection and conduction cooling (no fans) | |
Environmental Specifications | ||
Operating Conditions | ||
Operating Temperature | -40 ºF to 140ºF (-40 to +60ºC) continuous operating temperature range -40 ºF to 185ºF (-40 to +85ºC) type test for 100 hours at 85ºC | |
Shock/Vib | 30G @11 ms | |
Altitude | 10,000 ft (3,048 m) Max operating temp is de-rated with increasing altitude per IEEE 1613-2009 | |
Relative humidity | 5 to 95% non-condensing | |
Non-operating conditions | ||
Temperature | -40ºF to 185ºF (-40ºC to 85ºC) | |
Relative humidity | 5 to 95% non-condensing | |
Altitude | 16,000 ft (4,876 m) Max operating temp is de-rated with increasing altitude per IEEE 1613a-2008 | |
Non-Op Free Fall Drop | 4 in. (100 mm) per ENG-339611 | |
Operating seismic/earthquake | NEBS GR-63 (5.4.1) | |
Non-op shock/vib | 40-50G (3.26 m/s minimum) | |
Regulatory compliance* | ||
Environmental substation compliance | IEC-61850-3 IEEE1613 | |
Immunity | EN61000-6-2 EN61000-4-2 (ESD) EN61000-4-3 (RF) EN61000-4-4 (EFT) EN61000-4-5 (SURGE) EN61000-4-6 (CRF) EN61000-4-11 (VDI) EN 55024, CISPR 24 EN50082-1 | |
EMC | 47 CFR, Part 15 ICES-003 Class A EN55022 Class A CISPR22 Class A AS/NZS 3548 Class A VCCI V-3 CNS 13438 EN 300-386 | |
Safety | USA: UL 60950-1 Canada: CAN/CSA C22.2 No. 60950-1 Europe: EN 60950-1 China: GB 60950-1 Australia/New Zealand: AS/NZS 60950-1 Rest of World: IEC 60950-1 CSA certified to UL/CSA 60950-1, 2nd Ed. CB report to IEC60950-1, 2nd Ed., covering all group differences and national deviations | |
Telecom | US: TIA-968-A CA: CS-03 EU: TBR1, 2, 4, 12, 13 RTTE Directive Australia: AS/ASIF S016, S038 Japan: JATE | |
Telecom interface standards | T1/E1 GRWIC: ITU-T G.703, G.704, G.706, G.823, ANSI T1.403 8-port Asyn/Sync RS-232 GRWIC: RS232, ITU-T V.11 | |
