* Giới thiệu chung về server HP DL385 G7 Base - 8 GB RAM:
Product Description

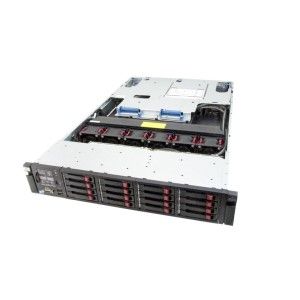

HP ProLiant DL385 G7 Base - Opteron 6136 2.4 GHz - 8 GB - 0 GB
Type
Server - rack-mountable
Height (Rack Units)
2U
Localisation
Europe
Server Scalability
2-way
Processor
1 x AMD Opteron 6136 / 2.4 GHz ( 8-core )
Cache Memory
12 MB L3 Cache
Cache Per Processor
12 MB
RAM
8 GB (installed) / 256 GB (max) - DDR3 SDRAM - Advanced ECC - 1333 MHz - PC3-10600
Storage Controller
RAID ( SATA 3Gb/s / SAS 6Gb/s ) - PCI Express x8 ( Smart Array P410i )
Server Storage Bays
Hot-swap 2.5"
Hard Drive
No HDD
Graphics Controller
ATI ES1000
Networking
GigE
Power
AC 120/230 V ( 50/60 Hz )
Dimensions (WxDxH)
44.5 cm x 70 cm x 8.6 cm
Weight
20.8 kg
Manufacturer Warranty
3 years warranty - on-site
- Thông số chi tiết server HP DL385 G7 Base - 8 GB RAM:
General
Type
Server
Recommended Use
Small business, corporate business
Product Form Factor
Rack-mountable - 2U
Server Scalability
2-way
Front Accessible Bays Qty
1
Hot-Swap Bays Qty
8
Localisation
Europe
Processor / Chipset
CPU
AMD Opteron 6136 / 2.4 GHz
Number of Cores
8-core
64-bit Computing
Yes
CPU Qty
1
Max CPU Qty
2
CPU Upgradability
Upgradable
Chipset Type
AMD SR5690/SP5100
Cache Memory
Installed Size
L3 Cache - 12 MB
Cache Per Processor
12 MB
RAM
Installed Size
8 GB / 256 GB (max)
Technology
DDR3 SDRAM - Advanced ECC
Memory Speed
1333 MHz
Memory Specification Compliance
PC3-10600
Form Factor
DIMM 240-pin
Features
Registered
Configuration Features
4 x 2 GB
RAM Supported
PC3-10600 - 256 GB - registered , PC3-10600 - 64 GB - unbuffered
Hard Drive
Type
No HDD
Storage Controller
Type
1 x RAID - plug-in card - PCI Express x8
Controller Interface Type
SATA 3Gb/s / SAS 6Gb/s
Storage Controller Name
Smart Array P410i
RAID Level
RAID 0, RAID 1, RAID 5, RAID 10, RAID 50
Buffer Size
256 MB
Monitor
Monitor Type
None.
Graphics Controller
Type
Integrated
Graphics Processor
ATI ES1000
Video Interfaces
VGA
Networking
Type
Integrated
Interface (Bus) Type
PCI Express x4
Ethernet Ports
4 x Gigabit Ethernet
Ethernet Controller
2 x HP NC382i
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller
Integrated Lights-Out 3
Features
Wake on LAN (WoL), ACPI support
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Expansion / Connectivity
Bays
1 (total) / 1 (free) x external 5.25" Slim Line , 8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots
1 (total) / 1 (free) x PCIe 2.0 x16 - full-length, full-height ( x8 mode ) , 2 (total) / 1 (free) x PCIe 2.0 x8 - half-length, full-height ( x4 mode ) , 2 (total) / 1 (free) x CPU , 24 (total) / 22 (free) x DIMM 240-pin
Interfaces
1 x serial , 1 x PS/2 keyboard , 1 x PS/2 mouse , 2 x VGA ( 1 front, 1 rear ) , 4 x LAN (Gigabit Ethernet) , 1 x HP iLO , 4 x USB 2.0 ( 2 front, 2 rear )
Miscellaneous
Features
Administrator password, power-on password, keyboard password, serial port I/O control, quick lock
Compliant Standards
ACPI 2.0
Power
Device Type
Power supply
Installed Qty
1
Max Supported Qty
2
Nominal Voltage
AC 120/230 V ( 50/60 Hz )
Power Provided
460 Watt
Operating System / Software
OS Certified
SuSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Enterprise Linux
Manufacturer Warranty
Service & Support
3 years warranty
Service & Support Details
Limited warranty - parts and labour - 3 years - on-site
Dimensions & Weight
Width
44.5 cm
Depth
70 cm
Height
8.6 cm
Weight
20.8 kg
Environmental Parameters
Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
10 - 90%
