* Giới thiệu chung về server HP ML310e Gen8 Intel Pentium G2020 2GB:
Product Description

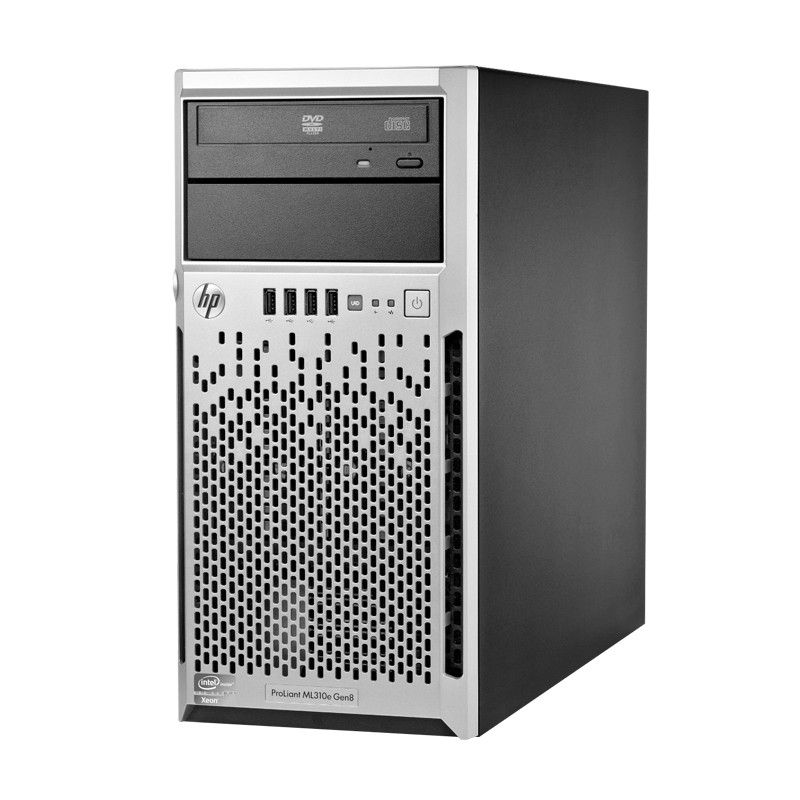

HP ProLiant ML310e Gen8 Entry - Pentium G2020 2.9 GHz - 2 GB - 0 GB
Type
Server - tower
Height (Rack Units)
4U
Localisation
Europe
Server Scalability
1-way
Processor
1 x Intel Pentium G2020 / 2.9 GHz ( Dual-Core )
Cache Memory
3 MB L3 Cache
Cache Per Processor
3 MB
RAM
2 GB (installed) / 32 GB (max) - DDR3 SDRAM - ECC - 1333 MHz - PC3-12800
Storage Controller
SATA ( SATA 3Gb/s ) - PCI Express 2.0 ( HP Dynamic Smart Array B120i )
Hard Drive
No HDD
Graphics Controller
Matrox G200
Networking
GigE
Power
AC 120/230 V ( 50/60 Hz )
Dimensions (WxDxH)
17.5 cm x 47.52 cm x 36.82 cm
Weight
11.47 kg
Manufacturer Warranty
1 year warranty - on-site
- Thông số chi tiết server HP ML310e Gen8 Intel Pentium G2020 2GB:
General
Type
Server
Recommended Use
Small business, corporate business
Product Form Factor
Tower - 4U
Server Scalability
1-way
Internal Bays Qty
4
Front Accessible Bays Qty
2
Localisation
Europe
Processor / Chipset
CPU
Intel Pentium G2020 / 2.9 GHz
Number of Cores
Dual-Core
CPU Qty
1
Max CPU Qty
1
CPU Upgradability
Upgradable
Chipset Type
Intel C204
Cache Memory
Installed Size
L3 Cache - 3 MB
Cache Per Processor
3 MB
RAM
Installed Size
2 GB / 32 GB (max)
Technology
DDR3 SDRAM - ECC
Memory Speed
1333 MHz
Memory Specification Compliance
PC3-12800
Form Factor
DIMM 240-pin
Features
Unbuffered, dual channel memory architecture, HP SmartMemory
Configuration Features
1 x 2 GB
Hard Drive
Type
No HDD
Storage Controller
Type
1 x SATA - integrated - PCI Express 2.0
Controller Interface Type
SATA 3Gb/s
Storage Controller Name
HP Dynamic Smart Array B120i
Channel Qty
6
RAID Level
RAID 0, RAID 1, RAID 10
Monitor
Monitor Type
None.
Graphics Controller
Type
Integrated
Graphics Processor
Matrox G200
Video Interfaces
VGA
Networking
Type
Integrated
Interface (Bus) Type
PCI Express x2
Ethernet Ports
2 x Gigabit Ethernet
Ethernet Controller
HP 330i
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller
Integrated Lights-Out 4
Features
Wake on LAN (WoL), PXE support
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Expansion / Connectivity
Bays
2 (total) / 2 (free) x external 5.25" x 1/2H , 4 (total) / 4 (free) x internal 3.5" LFF
Slots
1 (total) / 0 (free) x CPU , 4 (total) / 3 (free) x DIMM 240-pin , 1 (total) / 1 (free) x PCIe 2.0 x4 - half-length, full-height ( x1 mode ) , 1 (total) / 1 (free) x PCIe 2.0 x8 - full-length, full-height ( x4 mode ) , 1 (total) / 1 (free) x PCIe 3.0 x8 - full-length, full-height , 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height ( x8 mode ) , 1 (total) / 1 (free) x SD card (internal)
Interfaces
1 x serial , 1 x VGA , 2 x LAN (Gigabit Ethernet) , 1 x HP iLO , 9 x USB 2.0 ( 4 front, 4 rear, 1 internal )
Miscellaneous
Features
Administrator password, power-on password, 85% efficiency power supply
Compliant Standards
ACPI 2.0b, FCC Class B certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, BSMI CNS 13438
Power
Device Type
Power supply
Nominal Voltage
AC 120/230 V ( 50/60 Hz )
Power Provided
350 Watt
Operating System / Software
OS Certified
SuSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux
Manufacturer Warranty
Service & Support
1 year warranty
Service & Support Details
Limited warranty - parts and labour - 1 year - on-site - response time: next business day
Dimensions & Weight
Width
17.5 cm
Depth
47.52 cm
Height
36.82 cm
Weight
11.47 kg
Environmental Parameters
Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
10 - 90% (non-condensing)
