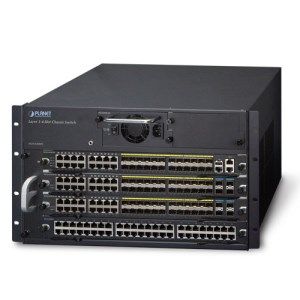

XGS3-42000R: Switch L3 Routing Chassis (4x option module card)

Switch planet layer 3 Routing Chassis XGS3-42000R

Giới thiệu sản phẩm

PLANET XGS3-42000R được sản xuất tập chung các giải pháp hội tụ cho các doanh nghiệp lớn, các khu trung tâm dữ liệu, data center... với khả năng mở rộng linh hoạt cực kỳ lớn:

• 160 cổng cáp đồng 10/100/1000BASE
• 156 cổng cáp quang SFP 100/1000BASE
• 60 cổng 10G SFP+
• 6 Khe cắm sợi quang 40G QSFP+

Positioned as the core layer switch, the XGS3-42000R serves ideally for large- and medium-sized networks and IP metropolitan networks by supplying advanced intelligent and secure features and giving high performance and flexibility.

Hỗ trợ kết nối quang tốc độ cao 10/40GB

Support 10/40-Gigabit Ethernet, which adopts the full-duplex technology instead of the low-speed, half-duplex CSMA/CD protocol, is a big leap in the evolution of Ethernet. 10/40-Gigabit Ethernet can be deployed in the star or ring topology. With the 10/40-Gigabit Ethernet technology applied, the XGS3-42000R provides broad bandwidth and powerful processing capacity. It is suitable for metropolitan networks and wide area networks. Using the XGS3-42000R, users can simplify network structures and reduce cost of network construction.

Hỗ trợ đầy đủ kết nối IPv6

The XGS3-42000R Chassis Switch supports IPv6 routing in hardware for maximum performance. As more network devices are growing and the need for larger addressing and higher security becomes critical, the XGS3-42000R Chassis Switch is the right product to meet the requirements.

Tính năng mở rộng cực cao và cơ động

The XGS3-42000R delivers wire-speed Gigabit and 40-Gigabit Ethernet connectivity in a highly-flexible and resilient modular platform. With high switching capacity, the XGS3-42000R Chassis Switch supports wire-speed L2/L3 forwarding and high routing performance for IPv4 and IPv6 protocols. The scalable and flexible modular architecture supports up to 1728Gbps forwarding performance in a single system. The XGS3-42000R is ideal for the core layer of campuses, enterprise networks and the aggregation layer of IP metropolitan networks.

Giao thức kết nối đa lớp

The XGS3-42000R supports various Layer 2 and management networking protocols to meet the requirements of complex network constructions. It is compatible with 802.1d/w/s, 802.1Q, 802.1p, 802.3ad, 802.3x, GVRP, DHCP, SNTP, etc.

The Chassis Switch also supports IPv6/IPv4 routing protocols including Layer 3 IP Static Routing, RIPv1/v2, OSPF, and VRRP protocols. Built in with abundant multicast features, the XGS3-42000R supports rich L2 multicast features such as IGMP snooping v1/v2/v3 and L3 multicast protocols -- DVMRP, PIM-DM, PIM-SM and PIM-SSM. Offering the rich application experience, the product supports multicast VLAN registration, multicast receive control and illegal multicast source detect functions. The XGS3-42000R Chassis Switch solution is cost-effective yet has the ability to expand to meet today’s demand for network expansion.

Khả năng bảo mật rất cao

PLANET XGS3-42000R offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. The XGS3-42000R Net Security also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent from IP snooping attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

Chất lượng dịch vụ

The XGS3-42000R Switch fully supports DiffServ module, so users can specify a queue bandwidth on each port. WRR/SP/SWRR scheduling is also provided. The XGS3-42000R supports the port security to enable trusted CoS, DSCP, IP precedence and port priority. Users can modify packets’ DSCP and COS values so that the traffic can be classified by port, VLAN, DSCP, IP precedence and ACL table. User can also modify packets’ DSCP and IP precedence values to specify different bandwidths for voice, data and video to customize different qualities of service.

Quản trị hiệu quả và an toàn

For efficient management, the XGS3-42000R Chassis Switch is equipped with console, Web and SNMP management interfaces. With the built-in Web-based management interface, the XGS3-42000R offers an easy-to-use, platform-independent management and configuration facility. The XGS3-42000R supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. For text-based management, the XGS3-42000R can be accessed via Telnet and the console port. Moreover, the XGS3-42000R offers secure remote management by supporting SSH, SSL and SNMPv3 connection which encrypt the packet content at each session.

Khả năng kết nối của XGS3-42000R

Giải pháp kết nối tổng thể

10/40-Gigabit Ethernet supported equipment has become the fundamental unit of enterprises and network servers. PLANET XGS3-42000R is the cost-effective, high-density and high-bandwidth chassis switch, which meets today’s market requirements. Its dedicated chassis architecture feature makes all modules in the platform operate together as one much larger switch providing multiple high-performance 10/40-Gigabit Ethernet network for backbone of enterprises, campuses or telecoms. The redundant management modules and dual power supplies provide the XGS3-42000R with nonstop network service ability. Moreover, all modules are hot-swappable. They can be added or exchanged without interrupting the operation of the whole system. The XGS3-42000R Chassis Switch is ideal for being a server farm switch connecting to servers and perfectly suitable for those networking environments requiring constant access to critical business applications.

For small area network communications on the campus and in the community, PLANET XGS3-42000R Chassis Switch is the best choice for an affordable and scalable network deployment. It offers a high-capacity chassis platform with high quality and reliability in 10/100/1000BASE-T, 1000BASE-SX/LX, 10GBASE-SR/LR and 40GBASE-SR4/LR4 scalable solutions that integrate easily into any large network. The XGS3-42000R can provide a maximum of up to either 160 high-density Gigabit Ethernet ports, 156 mini-GBIC/SFP ports, 60 10G SFP+ ports or 6 40G QSFP+ ports which are available for remote uplink connectivity in a single system and provide the uplink to the edge network through 1000BASE-SX/LX SFP modules, 10GBASE-SR/LR SFP+ modules or 40GBASE-SR4/LR4 QSFP+ modules. The XGS3-42000R offers a comprehensive set of modules for complex network and gives network manager the flexibility to expand large area network when needed.

Thông số kỹ thuật của switch layer 3Chassis XGS3-42000R

Hardware and Performance

• 4 open module slots design:

- 2 Management Modules with 2 Standard Modules

- 1 Management Module with 3 Standard Modules

• 160-port Gigabit copper, 156-port Gigabit SFP, 60-port 10G SFP+ and 6-port 40G QSFP+
• Hot-swappable switching modules
• Non-blocking wire-speed Layer 2 and Layer 3 switching
• 1 RJ45 serial console interface on Management Module for switch basic management and setup

Redundant Power System

• 100~240V AC dual power redundant

- 1 default AC power supply

- 1 additional open slot for optional power supply

• Active-active redundant power failure protection
• Backup of catastrophic power failure on one supply

IP Stacking

• IP stacking technology -- connect with stack member via any Gigabit /10G/40G interface
• Single IP address management, supporting up to stackable 24 units

IP Routing Features

• IP Routing protocol supports RIP v1/v2, OSPF v2, BGP4
• Routing interface provides VLAN routing mode
• Policy-based Routing(PBR) for IPv4 and IPv6
• VRRP protocol for redundant routing deployment
• Supports route redistribution

Multicast Routing Features

• Supports Multicast Routing Protocols:

- PIM-DM (Protocol Independent Multicast - Dense Mode)

- PIM-SM (Protocol Independent Multicast - Sparse Mode)

- PIM-SSM (Protocol Independent Multicast - Source-Specific Multicast Mode)

- DVMRP (Distance Vector Multicast Routing Protocol)

• Supports IGMP v1/v2/v3

Layer 2 Features

• Supports auto-negotiation, auto-MDI/MDI-x and half-duplex/full-duplex modes for all 1000BASE-T ports.
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• Supports VLAN

- IEEE 802.1Q tagged VLAN

- Up to 4K VLANs groups, out of 4041 VLAN IDs

- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)

- GVRP protocol for VLAN Management

- Private VLAN Edge (PVE)

• Supports Spanning Tree Protocol

- STP, IEEE 802.1d (Spanning Tree Protocol)

- RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)

- MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)

• Supports Link Aggregation

- 802.3ad Link Aggregation Control Protocol (LACP)

- Cisco ether-channel (static trunk)

- Maximum 128 trunk groups, up to 8 ports per trunk group

- Up to 16Gbps bandwidth (Duplex Mode)

• Provides Port Mirror (many-to-1)
• Port Mirroring to monitor the incoming or outgoing traffic on a particular port

Quality of Service

• 8 priority queues on all switch ports
• Supports strict priority and Weighted Round Robin (WRR) CoS policies
• Ingress Shaper and Egress Rate Limit per port bandwidth control
• Traffic policies based on application

Multicast

• Supports IGMP snooping v1, v2 and v3
• Querier mode support

Security

• IEEE 802.1x port-based network access authentication
• MAC-based network access authentication
• IP-based Access Control List (ACL)
• MAC-based Access Control List
• Static MAC

Management

• IPv4/IPv6 Switch Management Interfaces

- Console/Telnet Command Line Interface

- Web switch management

- SNMP v1, v2c, and v3 switch management

- SSH ( Secure Shell)/SSL secure access

• Four RMON groups (history, statistics, alarms and events)
• IPv6 IP Address/NTP/DNS management
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• DHCP/BOOTP relay and Relay Option 82
• DHCP Server
• DNS-Proxy
• Firmware upload/download via FTP/TFTP
• SNTP (Simple Network Time Protocol)
• LLDP (Link Layer Discovery Protocol )
• User Privilege levels control
