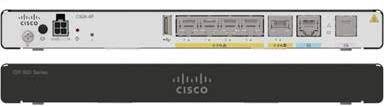

Router Cisco C926-4P cung cấp bảo mật và bảo vệ mối đe dọa tích hợp, bảo vệ các mạng khỏi các lỗ hổng và tấn công Internet đã biết và mới. Thiết bị định tuyến Cisco C926-4P có cấu hình cố định, mạnh mẽ, cung cấp kết nối băng thông rộng và Metro Ethernet an toàn.
Các nhà cung cấp dịch vụ Ethernet có thể triển khai Cisco C926-4P tại các địa điểm của khách hàng dưới dạng CPE. Khả năng quản lý tập trung hoặc từ xa khả dụng thông qua các công cụ dựa trên nền tảng web và Phần mềm Cisco IOS® để hiển thị và kiểm soát toàn bộ cấu hình mạng tại các chi nhánh từ xa.
Thông số kĩ thuật:
Feature | Specification |
Cisco IOS Software | |
IP and IP services | - Routing Information Protocol Versions 1 and 2 (RIPv1 and RIPv2) - Generic Routing Encapsulation (GRE) and Multipoint GRE (MGRE) - Cisco Express Forwarding - Standard 802.1d Spanning Tree Protocol - Layer 2 Tunneling Protocol (L2TP) - Network Address Translation (NAT) - Dynamic Host Configuration Protocol (DHCP) server, relay, and client - Dynamic DNS - DNS Proxy - DNS Spoofing - Access Control Lists (ACLs) - IPv4 and IPv6 multicast - Open Shortest Path First (OSPF) - Border Gateway Protocol (BGP) - Performance Routing (PfR) - Enhanced Interior Gateway Routing Protocol (EIGRP) - Virtual Route Forwarding (VRF) Lite - Next Hop Resolution Protocol (NHRP) - Bidirectional Forwarding Detection (BFD) - Web Cache Communication Protocol (WCCP) |
xDSL | - True Multimode VDSL2 and ADSL2+ over Annex B/J, including traditional G.DMT and T1.413 - World-class interoperability with industry-standard DSL Access Multiplexer (DSLAM) chipsets - Highest field reliability with Impulse Noise Protection (INP) over Repetitive Electrical Impulse Noise (REIN) and single isolated impulse noise (SHINE), extended INP delay, G.INP, physical layer retransmission, Seamless Rate Adaptation (SRA), and Bitswap - VDSL2 Persistent Storage Device (PSD) profiles up to 17a/b with support for spectral shaping - VDSL2 vectoring to offer blazing fiber speeds over copper - Remote management with TR069 and CWMP - Investment protection with Gigabit Ethernet |
Switch features | - Auto Media Device In/Media Device Cross Over (MDI-MDX) - 25 802.1Q VLANs - MAC filtering - Switched Port Analyzer (SPAN) - Storm control - Smart ports - Secure MAC address - Internet Group Management Protocol Version 3 (IGMPv3) snooping - 802.1X |
Quality of Service (QoS) | - Low-Latency Queuing (LLQ) - Weighted Fair Queuing (WFQ) - Class-Based WFQ (CBWFQ) - Class-Based Traffic Shaping (CBTS) - Class-Based Traffic Policing (CBTP) - Policy-Based Routing (PBR) - Class-Based QoS MIB - Class of Service (CoS)-to-Differentiated Services Code Point (DSCP) mapping - Class-Based Weighted Random Early Detection (CBWRED) - Network-Based Application Recognition (NBAR) - Link Fragmentation and Interleaving (LFI) - Resource Reservation Protocol (RSVP) - Real-Time Transport Protocol (RTP) header compression (cRTP) - Differentiated Services (DiffServ) - QoS preclassify and prefragmentation - Hierarchical QoS (HQoS) |
Management | - Cisco Configuration Professional - Cisco Configuration Express - Cisco Configuration Engine support - Cisco AutoInstall - Cisco IP Service-Level Agreement (IP SLA) - Cisco IOS Embedded Event Manager (EEM) - CiscoWorks - Cisco Security Manager - Telnet, Simple Network Management Protocol Version 3 (SNMPv3), Secure Shell (SSH) Protocol, Command-Line Interface (CLI), and HTTP management - RADIUS and TACACS+ - Cisco Next Generation Plug-and-Play (NG PnP) Protocol |
High availability | - Virtual Router Redundancy Protocol (VRRP) (RFC 2338) - HSRP - MHSRP |
Metro Ethernet | - Ethernet OA&M - Ethernet Local Management Interface (E-LMI) - IP SLA for Ethernet |
IPv6 | - IPv6 addressing architecture - IPv6 name resolution - IPv6 statistics - IPv6 translation: Transport packets between IPv6-only and IPv4-only endpoints (NAT-Protocol Translation) - Internet Control Message Protocol Version 6 (ICMPv6) - IPv6 DHCP - OSPFv3 - BGP4+ - IPv6 Path Maximum Transmission Unit (PMTU) - IPv6 neighbor discovery - IPv6 stateless address autoconfiguration (SLAAC) - IPv6 multicast routing |
Application visibility and control | - NBAR2 - Flexible NetFlow (FNF) - Performance Agent |
Number of recommended users | - 50 |
CPU | Intel® x86 2.2-GHz |
Default and maximum DRAM | - Default 1 GB |
Default and maximum flash memory | - 2 GB not upgradable |
WAN | - 1 port GE and - 1 VADSL (Annex B/J) |
LAN switch | - 4-port GE managed switch |
Separate console ports | - RJ-45 |
USB 2.0 | - One USB 2.0 Type A port |
Physical dimensions and weight | Weight: 2.65 lb (1.20 kg) maximum Dimensions: H x W x D = 1.10 x 10.20 x 7.00 in. (2.80 x 25.91 x 17.78 cm) (includes rubber feet) |
Power supply | Power specifications: - AC input voltage: Universal 100 to 240 VAC - Frequency: 50 to 60 Hz - External power adapter: 12 VDC; 30 W |
Approvals and compliance | Safety: - IEC 60950-1 - UL 60950-1 - CAN/CSA C22.2 No. 60950-1 - EN 60950-1 - AS/NZS 60950.1 - Class III Equipment Emissions: - 47 CFR Part 15: 2006 ◦ CISPR22: Edition 6.0: 2008 ◦ CNS13438: 2006 ◦ EN 300 386 V1.6.1 ◦ EN 55032 ◦ EN61000-3-2: 2006 [+ amd 1 & 2] ◦ EN61000-3-3: 2008 ◦ ICES-003 Issue 5: 2012 ◦ KN 22: 2009 - TCVN 7189: 2009 - VCCI: V-3/2012.04 Immunity: - CISPR24: 2010 [+ amd 1 & 2] ◦ EN300386: V1.6.1 ◦ EN55024: 2010 ◦ EN61000-6-1: 2007 ◦ KN24: 2011 ◦ TCVN 7317:2003 |
Environmental operating range | - Nonoperating temperature: -40° to 158°F (-40° to 70°C) - Nonoperating humidity: 5% to 95% relative humidity (noncondensing) - Nonoperating altitude: 0 to 15,000 ft (0 to 4570 m) - Operating temperature: 0° to 45°C (de-rate 1°C per 1000-ft increase in altitude) - Operating humidity: 5% to 95% relative humidity (noncondensing) - Operating altitude: 0 to 10,000 ft (0 to 3000 m) |
