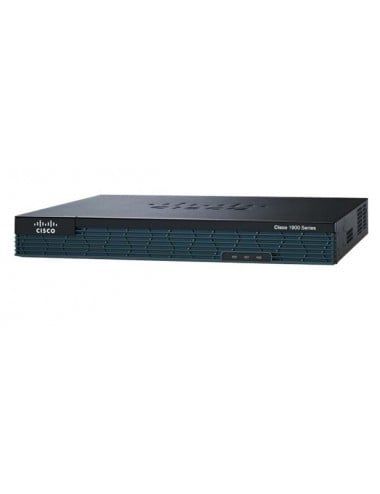

Router Cisco CISCO1905-SEC/K9 cung cấp mức độ tích hợp dịch vụ ngày càng tăng với các dịch vụ dữ liệu, an ninh, không dây và di động, cho hiệu quả cao hơn và tiết kiệm chi phí.
Router Cisco CISCO1905-SEC/K9 cho phép triển khai trong môi trường WAN tốc độ cao với các dịch vụ đồng thời cho phép lên đến 15 Mbps.
Router Cisco CISCO1905-SEC/K9 được thiết kế để đáp ứng các yêu cầu kinh doanh của khách hàng, CISCO1905-SEC/K9 với 2 EHWIC slots cung cấp một loạt hiệu suất các giao diện module và các dịch vụ khi mạng của bạn cần phát triển
Thông số kĩ thuật:
Services and Slot Density | |
Embedded hardware-based cryptography acceleration (IPsec + SSL) | Yes |
RJ-45 onboard LAN/WAN 10/100/1000 ports | 2 |
Serial port | Slot 0 (integrated HWIC-1T) |
EHWIC slots | 1 |
Memory (DDR2 DRAM): Default/maximum | 256 MB/512 MB (license upgradable) |
USB flash memory (internal): Default/maximum | 256 MB/256 MB |
External USB flash-memory slots (Type A) | 1 |
USB console port (mini-Type B) (up to 115.2 kbps) | 1 |
Serial console port (up to 115.2 kbps) | 1 |
Serial auxiliary port (up to 115.2 kbps | 1 |
Integrated power supply | AC |
Power-supply options | POE (external) |
Redundant-power-supply support | No |
Power Specifications | |
AC input voltage | 100-240V ~ |
AC input frequency | 47-63 Hz |
AC input current range AC power supply (maximum) (amps) | 1.5-0.6 |
AC input surge current | <50A |
Typical power (no modules) | 25W |
Maximum power capacity with AC power supply | 60W |
Maximum power capacity with PoE power supply (platform only) | 70W |
Maximum PoE device power capacity with PoE power supply | 80W |
Physical Specifications | |
Dimensions (H x W x D) | 1.75 x 13.5 x 11.5 in. (4.45 x 34.29 x 29.21 cm) |
Rack height | 1 rack unit (1RU) |
Rack-mount 19 in. (48.3 cm) EIA | Optional |
Wall-mount (refer to installation guide for approved orientation) | Yes |
Weight: With AC power supply (no modules) | 8 lb (3.175 kg) |
Weight: With PoE power supply (no modules) | 12.8 lb |
Maximum weight: Fully configured | 14 lb |
Airflow | Back to sides |
Environmental Specifications | |
Operating Conditions | |
Temperature: 5906 ft (1800m) maximum altitude | 32-104˚F (0-40˚C) |
Temperature: 9843 ft (3000m) maximum altitude | 32-77˚F (0-25˚C) |
Altitude | 10,000 ft (3,000m) |
Humidity | 10 to 85% relative humidity (RH) |
Acoustic: Sound pressure (typical/maximum) | 32.9/58.3 dBA |
Acoustic: Sound power (typical/maximum) | 41.9/67.2 dBA |
Transportation and Storage Conditions | |
Temperature | -40 to 158˚F (-40 to 70˚C) |
Humidity | 5 to 95% RH |
Altitude | 15,000 ft (4,570m) |
Regulatory Compliance | |
Safety | UL 60950-1 |
EMC | 47 CFR, Part 15 ICES-003 Class A, EN55022 Class A, CISPR22 Class A, AS/NZS 3548 Class A, VCCI V-3, EN 300-386, EN 61000 (Immunity), EN 55024, CISPR 24, EN50082-1 |
Telecom | TIA/EIA/IS-968 |
